1000万像素12mm 工业镜头C Mount

物距

倍率

视野 2/3"(mm)

型号Model

FM1228MP10

mm

-

横边H

纵边V

像机尺寸Image Size

2/3-inch

1000

0.012X

733.3

550.0

焦距Focal length

12mm

900

0.013X

660.0

495.0

光圈范围F?No.

F2.8-16

850

0.014X

623.3

467.5

最短物距M.O.D(m)

0.1-Inf.

800

0.015X

586.7

440.0

控制方式Operation

Iris

Manual手动调整

750

0.016X

550.0

412.5

Focus

Manual手动调整

700

0.017X

513.3

385.0

视场角

Angle of View

(D×H×V)

2/3"

49.2°×40.2°×30.8°

650

0.018X

476.7

357.5

1/2"

36.9°x29.9°x22.6°

600

0.020X

440.0

330.0

1/3"

28.1°×22.6°×17.1°

550

0.022X

403.3

302.5

工作波长 Operating Wavelength

400nm~700nm

500

0.024X

366.7

275.0

畸变TV Distortion

-0.2%

450

0.027X

330.0

247.5

光学后焦BFL

9.88mm

400

0.030X

293.3

220.0

法兰距Flange FL

17.526mm

350

0.034X

256.7

192.5

接口Mount

C-Mount

300

0.040X

220.0

165.0

近摄视野2/3"FOV

7.33cm×5.5cm(WD=100mm)

250

0.048X

183.3

137.5

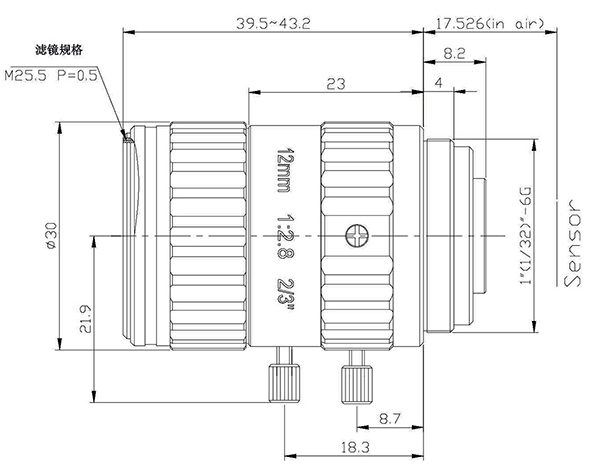

外形尺寸Dimension

Φ30×39.5mm

200

0.060X

146.7

110.0

重量Weight

75g

180

0.067X

132.0

99.0

分辨率 Resolution

10MP

150

0.080X

110.0

82.5

滤镜尺寸Filter

M25.5 P=0.5mm

100

0.120X

73.3

55.0

工作温度Working Temperature

-20?C ～ +60?C

-

-

-

-
