1.1英寸千万像素75mm低畸变微距镜头C Mount

型号Model

TM7538MP12

像机尺寸Image Size

1.1-inch

焦距Focal length

75mm

光圈范围F?No.

F3.8-16

畸变Distortion

<0.05%

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

接口Mount

C-Mount

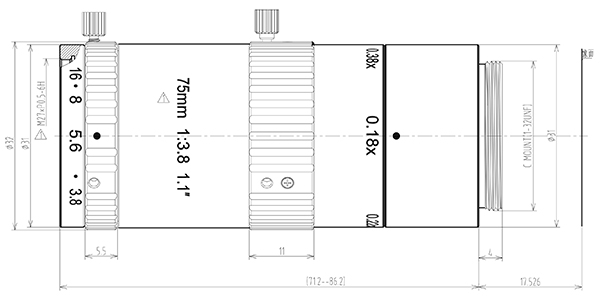

外形尺寸Dimension

Φ31×71.2mm

滤镜尺寸Filter

M27x 0.5

工作温度Working Temperature

-20?C ～ +60?C

物距Working Distance(mm)

倍率Optical Magnification

视野1.1"（Φ17.6）Field of View

视野1"（Φ16）Field of View

视野2/3"（Φ11）Field of View

H

V

H

V

H

V

471

-0.18X

78.22

58.66

71.11

53.33

48.88

36.66

457

-0.186X

75.69

56.77

68.81

51.61

47.31

35.48

432

-0.2X

70.4

52.8

64

48

44

33

407

-0.214X

65.79

45.71

59.81

44.85

41.12

30.84

382

-0.231X

60.95

45.71

55.41

41.55

38.09

28.57

357

-0.25X

56.32

42.24

51.2

38.4

35.2

26.4

332

-0.274X

51.38

38.54

46.71

35.03

32.11

24.08

307

-0.302X

46.62

34.96

42.38

31.78

29.13

21.85

282

-0.337X

41.78

31.33

37.98

28.48

26.11

19.58

257

-0.38X

37.5

27.78

33.68

25.26

23.15

17.36
