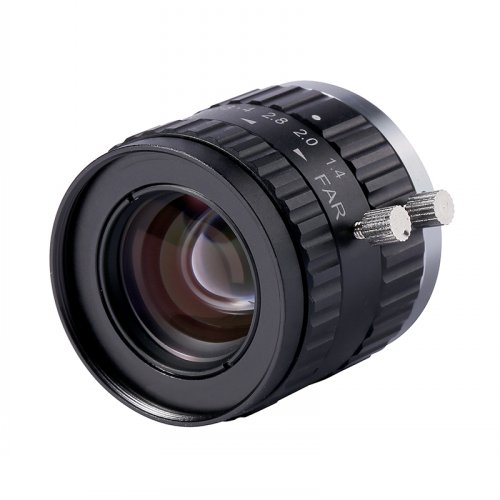

500万像素16mm低畸变FA镜头C Mount

物距Working Distance

倍率Magnification

视野 2/3"Field of View(mm)

型号Model

HM1614MP5

mm

-

H

V

像机尺寸Image Size

2/3-inch

900

0.018X

503.2

376.8

焦距Focal length

16mm

850

0.019X

475.6

356.2

光圈范围F?No.

F1.4-16

800

0.020X

448.0

335.5

最短物距M.O.D(m)

0.1-Inf.

750

0.021X

420.4

314.8

控制方式Operation

Iris

Manual手动调整

700

0.023X

392.8

294.1

Focus

Manual手动调整

650

0.024X

365.2

273.4

视场角

Angle of View

(D×H×V)

2/3"

38.1°×30.5°×23.1°

600

0.026X

337.6

252.8

1/2"

27.8°×22.3°×16.8°

550

0.029X

310.0

232.1

畸变Distortion

<0.1%

500

0.031X

282.5

211.4

光学后焦BFL

12.7mm

450

0.035X

254.9

190.7

接口Mount

C-Mount

400

0.039X

227.3

170.0

近摄视野Object Dimension

170.4mm×127.6mm(WD=300mm)

350

0.044X

199.7

149.4

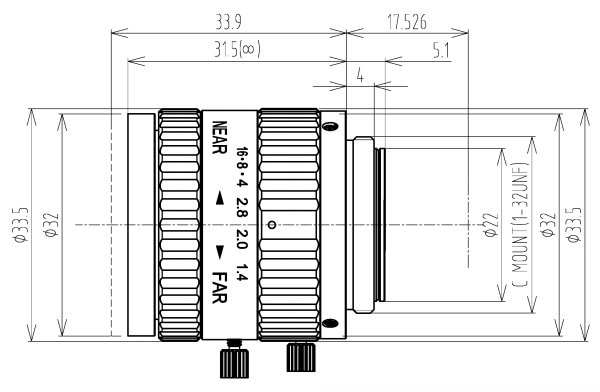

外形尺寸Dimension

Φ32.5×36.5mm

300

0.052X

170.4

127.6

重量Weight

67.0g

250

0.061X

144.5

108.0

分辨率Horizontal Resolution

5.0MP

200

0.076X

116.9

87.3

滤镜尺寸Filter Thread

M30.5x 0.5

150

0.100X

89.3

66.6

工作温度Working Temperature

-20?C ～ +60?C

100

0.145X

61.7

45.9
