500万像素35mm手动光圈镜头C Mount

物距Working Distance

倍率Optical Magnification

视野 1/1.8"Field of View(mm)

型号Model

VM3520MP5

mm

-

H

V

像机尺寸Image Size

1/1.8-inch

1000

0.036X

201.6

151.2

焦距Focal length

35mm

950

0.037X

191.3

143.5

光圈范围F?No.

F2.0-C

900

0.040X

181.1

135.8

最短物距M.O.D(m)

0.2-Inf.

850

0.042X

170.1

127.6

控制方式Operation

Iris

Manual手动调整

800

0.045X

160.5

120.4

Focus

Manual手动调整

750

0.048X

150.3

112.7

视场角

Horizontal

Angle of View

(D×H×V)

1/1.8"

12.24°×8.8°×7.0°

700

0.051X

140.0

105.0

1/2.5"

11.1°×8.84°×6.7°

650

0.055X

129.8

97.3

1/3"

9.3°×7.4°×5.5°

600

0.060X

119.5

89.6

畸变Distortion

<0.1%

550

0.066X

109.2

81.9

光学后焦BFL

19.0mm

500

0.073X

99.0

74.2

接口Mount

C-Mount

450

0.081X

88.7

66.5

近摄视野Object Dimension

57.9mm×43.4mm(WD=300mm)

400

0.092X

78.4

58.8

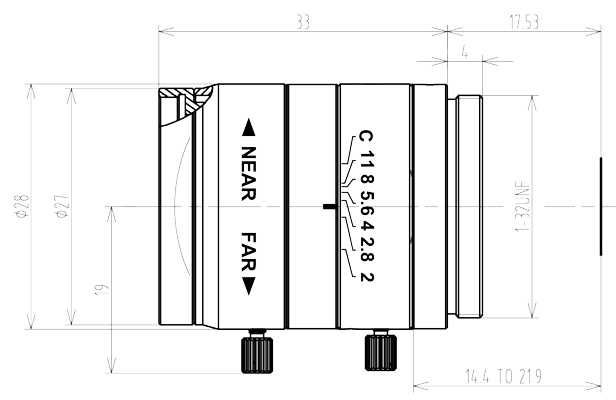

外形尺寸Dimension

Φ28×33mm

350

0.105X

68.2

51.1

重量Weight

48.0g

300

0.124X

57.9

43.4

滤镜尺寸Filter Thread

M25.5x 0.5

250

0.151X

47.6

35.7

工作温度Working Temperature

-20?C ～ +60?C

200

0.193X

37.3

28.0
