20MP FA Lens HK2528MP20 25mm Low distortion Lens 1.1-inch F2.8 C-Mount

FH至尊

20MP FA Lens HK2528MP20 25mm Low distortion Lens 1.1-inch F2.8 C-Mount: 1.1″C-Mount f=25mm F2.8; Maximum image circle of φ17.6mm; Ultra-High Resolution 20MP; Low distortion,Excellent image uniformity; Metal structure，compact appearance; Used in Industrial Camera,ITS Camera

Tel:+86 020-38312466

Specifications Dimension PDF download Other

20MP 25mm Low distortion FA Lens C Mount			Working Distance	Optical Magnification	1.1"Field of View(mm)
Model		HK2528MP20	mm	X	H	V
Image Size		1.1-inch	5000	0.005X	2820.0	2120.0
Focal length		25mm	2000	0.013X	1084.6	815.4
F?No.		F2.8-22	1000	0.025X	564.0	424.0
M.O.D(m)		0.1-Inf.	900	0.028X	503.6	378.6
Operation	Iris	Manual	800	0.031X	454.8	341.9
Operation	Focus	Manual	700	0.036X	391.7	294.4
Angle of View (D×H×V)	1.1"	37.6°×30.4°×23°	600	0.042X	335.7	252.4
	1"	34.2°×27.6°×20.9°	550	0.045X	313.3	235.5
	2/3"	23.9°×19.2°×14.5°	500	0.050X	282.0	212.0
Distortion		<0.1%	450	0.055X	256.4	192.7
BFL		29.6mm	400	0.061X	231.1	173.8
Mount		C-Mount	350	0.070X	207.4	151.4
Object Dimension		174.1mm×130.9mm(WD=300mm)	300	0.081X	174.1	130.9
Dimension		Φ37×78mm	250	0.096X	146.9	110.4
Weight		182g	200	0.118X	119.4	89.5
Filter Thread		M35.5x 0.5	150	0.154X	91.6	68.8
Working Temperature		-20?C ～ +60?C	100	0.221X	63.8	48.0

Product Features
◆ Brand：ZLKC
◆ Image Size：1.1″ C-mount
◆ Focal length：f=25mm
◆ F No.：F2.8-22
◆ Features：1.1-inch FA Lens 25mm 20MP Manual Iris Lens Low distortion C Mount HD Lens

Model
HK2528MP20

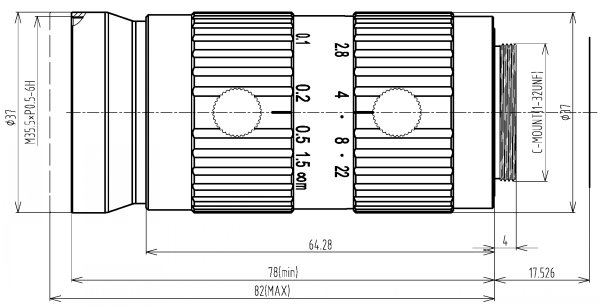

Dimension
FH至尊(中国)有限公司官网

Industries Application
These are used in machine vision and ITS monitoring. These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C，traffic cameras?and so on
