CCTV Lens VG12050MP8IR 12-50mm 8.0 Megapixel DC Iris Lens,2/3” Vari-focal HD Lens C Mount: 2/3″C-Mount 12-50mm; 8MP Auto DC iris F1.6-360; High resolution ,excellent image uniformity; Locking set screws for focus and zoom; IR Correction Lens, compact structure; For Security Camera,CCTV Lens

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		VG12050MP8IR
Image Size		2/3-inch
Focal length		12-50mm
F?No.		F1.6-360
M.O.D(m)		0.3m
Operation	Iris	Auto
	Focus	Manual
	Zoom	Manual
Distortion	1/2"Type	-1%@wide
	2/3"Type	1%@wide
Horizontal Angle of View	2/3"Type	35.8°×7.6°
Mount		C-Mount
Back?focal?length		8.9mm-14mm
Dimension		Ф51x87.9mm
Weight		235.0g
Remark		8MP HD Metal material

Product Features
◆ Brand：ZLKC
◆ Image Size：2/3″ C-mount
◆ Focal length：f=12-50mm
◆ F No.：F1.6-360
◆ Features：2/3-inch 12-50mm 8.0Megapixel DC Iris Lens IR CCTV? Lens C Mount HD Lens

Model
VG12050MP8IR

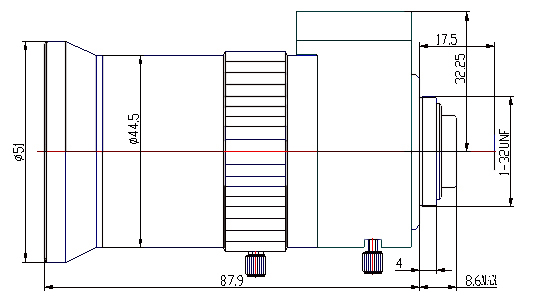

Dimension
FH至尊(中国)有限公司官网

※ Industries Application
These are used in video surveillance industry. These cover applications from ITS and road monitoring and bank to Building monitoring, postal sorting and traffic cameras and so on
