  • Current location: Home >Industrial Lens >8 Mega Pixels Lens >1-inch Lenses >C-Mount Lens VM7528MPC 75mm 8MP F2.8 Manual Iris camera Lens 1-inch

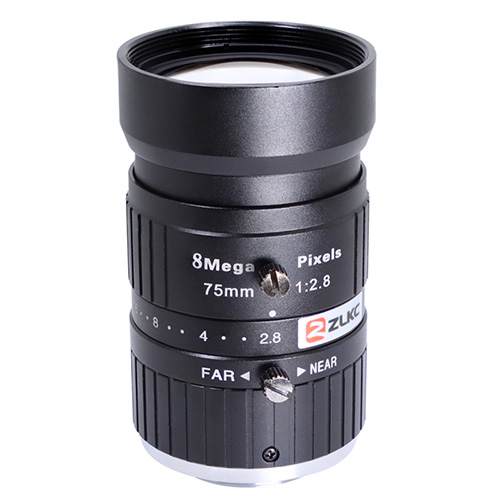

      C-Mount Lens VM7528MPC 75mm 8MP F2.8 Manual Iris camera Lens 1-inch
      1″C-Mount 75mm F2.8
      High resolution ,high clarity
      Can suppress stray light
      High resolution ,high clarity
      Locking set screws for focus and Iris
      Lower price,High cost performance

      Model

      VM7528MPC

      Image Size

      1-inch

      Focal length

      75mm

      F No.

      F2.8

      M.O.D(m)

      0.5m-Inf.

      Operation

      Iris

      Manual

      Focus

      Manual

      Horizontal Angle of View

      1" Type

      9.69°x7.22°

      2/3" Type

      6.73°x5.10°

      1/1.8" Type

      5.5°x4.0°

      Distortion

      1"Type

      -0.05%

      Mount

      C-Mount

      Dimension

      Ф40x60mm

      Weight

      148.0g

      Filter

      M37 P=0.75mm

      Remark

      8MP HD LENS

      Product Features
      ◆ Brand：ZLKC
      ◆ Image Size：1″ C-mount
      ◆ Focal length：f=75mm
      ◆ F No.：F2.8-C
      ◆ Features：Manual Iris Lens 1-inch 75mm F2.8 C Mount Industrial camera Lens

      Model
      VM7528MPC

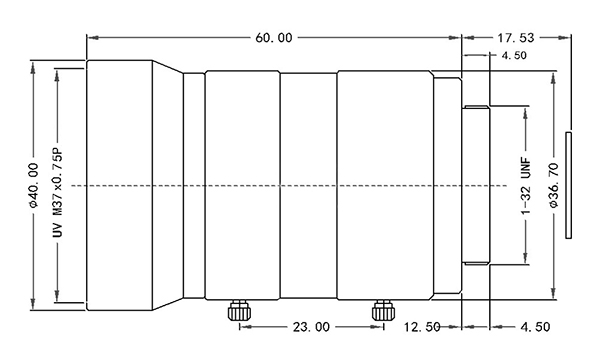

      Dimension
      FH至尊(中国)有限公司官网

      Industries Application
      Suitable for Industrial Inspection . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C and so on
      FH至尊(中国)有限公司官网VM7528MPC Specifications
