型号Model

HM2514MP3

像机尺寸Image Size

2/3-inch

焦距Focal length

25mm

光圈范围F?No.

F1.4-C

最短物距M.O.D(m)

0.2-Inf.

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

视场角Horizontal Angle of View

2/3"Type

37.5°×30.5°×23°

1/2"Type

27.8°×22.4°×16.9°

畸变Distortion

2/3"Type

-1%@y=5.5mm

1/2"Type

-0.56%@y=4.0mm

后焦距Back?focal?length

13.60mm

接口Mount

C-Mount

近摄视野Object Dimension (mm) WD=250mm

117.9x94.1x70.4mm

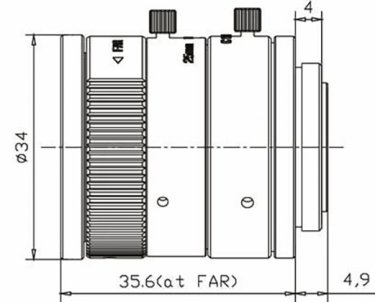

外形尺寸Dimension

Ф34x35.6mm

重量Weight

85.0g

分辨率Horizontal Resolution

超过100lp/mm

入瞳直径Entrance Pupil Diameter

17.88mm

滤镜尺寸Filter Thread

M30.5x 0.5

工作温度Working Temperature

-20?C ～ +60?C
