型号Model

HM7528MP3

像机尺寸Image Size

2/3-inch

焦距Focal length

75mm

光圈范围F?No.

F2.8-C

最短物距M.O.D(m)

1.0-Inf.

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

视场角Horizontal Angle of View

2/3"Type

8.5°×6.8°×5.1°

1/2"Type

6.2°×4.9°×3.8°

畸变Distortion

2/3"Type

0.3%@y=5.5mm

1/2"Type

0.2%@y=4.0mm

后焦距Back?focal?length

14.35mm

接口Mount

C-Mount

近摄视野Object Dimension (mm) WD=1100mm

140.7x112.6x84.5mm

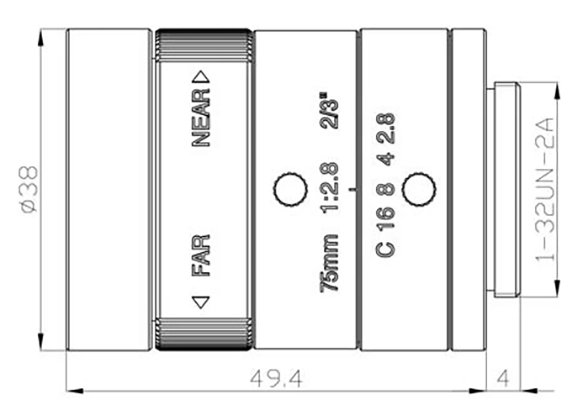

外形尺寸Dimension

Ф38x49.4mm

重量Weight

105.0g

分辨率Horizontal Resolution

超过100lp/mm

入瞳直径Entrance Pupil Diameter

26.72mm

滤镜尺寸Filter Thread

M30.5x 0.5

工作温度Working Temperature

-20?C ～ +60?C
