规格：2/3″C型 f=35mm
500万像素高分辨率
宽带增透膜,提高透光性能
解像力高,成像一致性好
低畸变,图像周边光亮比高
体积小,兼容可见光和红外波段
申请报价
|

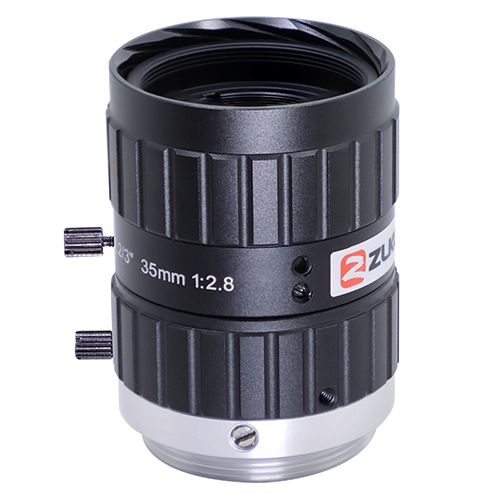

500万像素工业镜头35mm 2/3” C Mount |
||
|
型号Model |
LM3528MP5 |
|
|
像面大小Image circle |
2/3-inch (Φ11) |
|
|
焦距Focal length |
35mm |
|
|
光圈范围F?No. |
F2.8-16 |
|
|
最短物距M.O.D(m) |
0.25-Inf. |
|
|
控制方式Operation |
Iris |
Manual手动调整 |
|
Focus |
Manual手动调整 |
|
|
视场角Horizontal Angle of View |
2/3"Type |
17.81°×14.30°×10.76° |
|
1/2"Type |
13.02°×10.44°×7.84° |
|
|
1/3"Type |
9.79°×7.84°×5.89° |
|
|
近摄视野FOV |
2/3"Type |
75.60×60.48×45.36mm |
|
1/2"Type |
54.96×44.00×32.96mm |
|
|
1/3"Type |
41.20×32.96×24.72mm |
|
|
畸变Distortion |
-0.03% |
|
|
后焦距Back?focal?length |
15.84mm |
|
|
法兰后焦Flange Back Focal Length |
17.526mm |
|
|
接口Mount |
C-Mount |
|
|
最大主光线夹角 CRA |
7.83° |
|
|
外形尺寸Dimension |
Φ31×38.9mm |
|
|
重量Weight |
61.0g |
|
|
滤镜尺寸Filter Thread |
M24*P0.5 |
|
|
工作温度Working Temperature |
-20?C ～ +60?C |
|
