2000万像素12mm大景深FA镜头C Mount

物距Working Distance

倍率Optical Magnification

视野 1.1"Field of View(mm)

型号Model

HK1228MP20

mm

X

H

V

相机靶面Image Size

1.1-inch

5000

0.002X

5727.0

4295.3

焦距Focal length

12mm

2000

0.006X

2307.0

1730.2

光圈范围F?No.

F2.8-22

1000

0.012X

1166.9

875.2

最短物距M.O.D(m)

0.1-Inf.

900

0.013X

1052.9

789.7

控制方式Operation

Iris

Manual手动调整

800

0.015X

938.9

704.2

Focus

Manual手动调整

700

0.017X

824.9

618.5

视场角

Angle of View

(D×H×V)

1.1"

66.7°×57°×45°

600

0.020X

710.9

533.2

1"

66.1°×54.8°×42.3°

550

0.022X

653.9

490.4

2/3"

47.9°×38.9°×29.6°

500

0.024X

596.9

447.7

畸变Distortion

<1%

450

0.026X

539.9

405.0

光学后焦BFL

10.6mm

400

0.029X

482.9

362.2

接口Mount

C-Mount

350

0.033X

425.9

319.4

近摄视野Object Dimension

368.9mm×276.6mm(WD=300mm)

300

0.038X

368.9

276.6

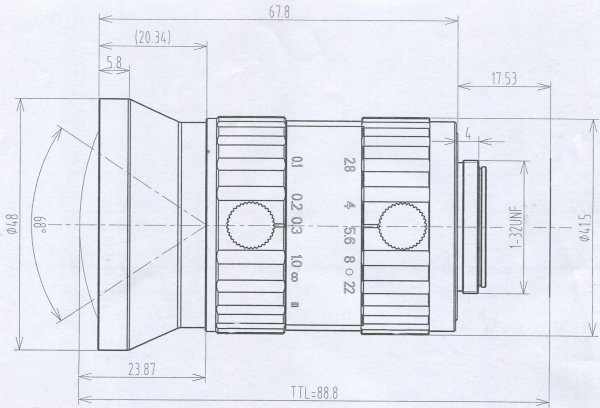

外形尺寸Dimension

Φ48×67.8mm

250

0.045X

312.0

233.9

重量Weight

245.0g

200

0.056X

254.9

191.1

滤镜尺寸Filter Thread

－

150

0.072X

197.2

148.4

工作温度Working Temperature

-20?C ～ +60?C

100

0.103X

141.0

105.6
