型号Model

FK5028MP20

像机尺寸Image Size

1.1-inch

焦距Focal length

50mm

光圈范围F?No.

F2.8-22

最短物距M.O.D(m)

0.25-Inf.

控制方式Operation

Iris

Manual手动调整

Focus

Manual手动调整

视场角Horizontal Angle of View

1.1" Type

20.0°×16.0°×12.0°

1"Type

18.4°×14.7°×11.0°

1/2"Type

9.3°7.4°×5.5°

1/3"Type

7.0°×5.5°×4.2°

畸变Distortion

-0.05%@y=8.8㎜;-0.01%@y=4㎜

法兰后焦距(Flange BFL)

17.526mm

后焦距Back?focal?length

21.3mm

接口Mount

C-Mount

近摄视野1.1"FOV

63.44mm×47.58mm(WD=250mm)

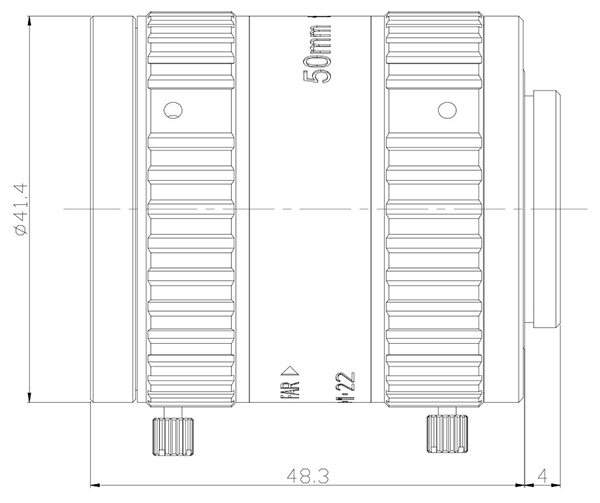

外形尺寸Dimension

Ф41.4x48.3mm

重量Weight

128.0g

滤镜尺寸Filter Thread

M37x 0.5mm

工作温度Working Temperature

-20?C ～ +60?C
