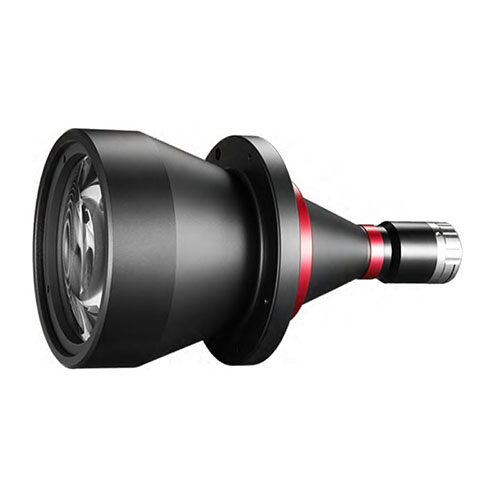

ZLKC megapixel Telecentric lens FK008X330TS 0.087x 330mm: 1″ C-Mount 0.087x; Megapixels high-resolution telecentric lens; supporting working distance 330mm; Wide magnification ranges from 0.08X to 6X; object telecentric design; Low distortion,Excellent image uniformity; large aperature for high brightness; Metal structure，Compact design; widely applied in instant measurement

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		FK008X330TS
Max Image Size		1-inch
Magnification		0.087X
WD (mm)		330±5
Working F/#		12.6
MTF30 (lp/mm)		>140
Depth of field(mm)		±84.6@F16
Distortion		<0.1%
I/O(mm)		779±5
FOV（WxH）(mm)	1" PYTHON 5000(12.43x9.83)	142.9x113.0
	1" IMX255(14.19x7.51)	163.1x86.3
	1" IMX183(13.13x8.76)	150.9x100.7
(° max)		<0.1°
Mount		C-Mount
TTL		431.7mm

Product Features
◆ Brand：ZLKC
◆ Image Size：1″ C-mount
◆ Magnification：0.087X
◆ WD：330mm±5mm
◆ Features：High Mag Telecentric Lens C-Mount 0.087x instant measurement lens

Model
FK008X330TS

Dimension
FH至尊(中国)有限公司官网

Industries Application
These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.
