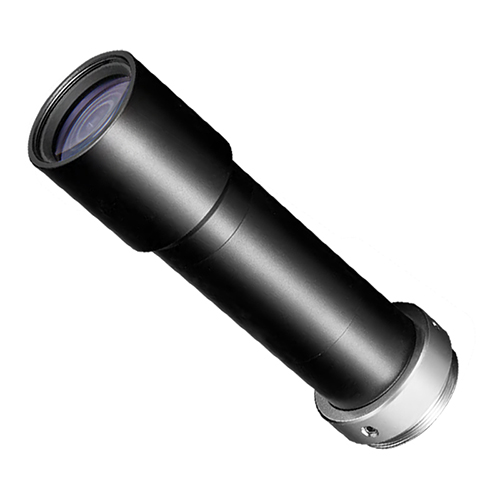

ZLKC megapixel Telecentric lens FM15X65T 1.5x 65mm: 2/3″ C-Mount 1.5x; Megapixels high-resolution telecentric lens; supporting working distance 65mm; Wide magnification ranges from 0.5X to 6X; object telecentric design; Low distortion,Excellent image uniformity; large aperature for high brightness; Metal structure，Compact design; widely applied in instant measurement

Contact

Tel:+86 020-38312466

Specifications Dimension PDF download Other

Model		FM15X65T
Max Image Size		2/3-inch
Magnification		1.5X
WD (mm)		65
F/# Working F/#		12.5
Object NA(mm)		0.045
Depth of field(mm)		0.4
Distortion		<0.1%
Resolution		5.6μ
FOV（WxH）(mm)	2/3"(8.8x6.6)	5.9x4.4
	1/1.8"(7.13x5.37)	4.8x3.6
	1/2"(6.4x4.8)	4.3x3.2
° max		<0.1°
Mount		C-Mount
TTL		74.4mm

Product Features
◆ Brand：ZLKC
◆ Image Size：2/3″ C-mount
◆ Magnification：1.5X
◆ WD：65mm
◆ Features：High Mag Telecentric Lens C-Mount 1.5x instant measurement lens

Model
FM15X65T

Dimension
FH至尊(中国)有限公司官网

Industries Application
These are used in machine vision . These cover applications from electronics and semiconductor SMT inspection and robotics to food inspection, postal sorting and inspections of printed images 3C,OCR and OCV systems to read or confirm the presence of codes and characters;detect defects, contaminants, functional flaws for Inspection application;measurement, inspection, positioning, identification, etc.
